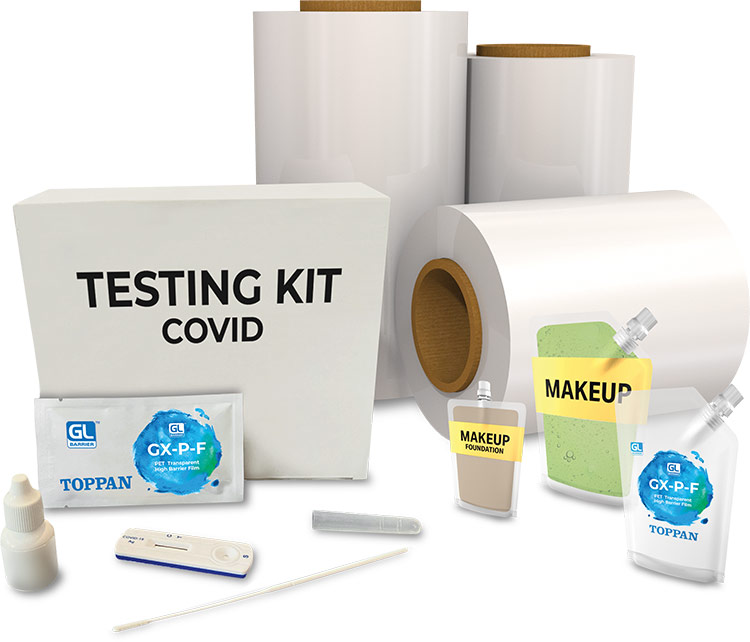

GX-P-F Standard

GX-P-F Standard

Aluminum Oxide Coated PET film using vacuum deposition coating technology with a protective ‘guard layer’

Key Features

  • Suitable for a wide range of Medical and Electronics
  • Ideal for maximum OTR and WVTR levels
  • Closest level of barrier to Aluminum foil

Applications

  • Industrial
  • Electronics

GX-P-F

Specifications

Barrier Coating MaterialAlox (Aluminum Oxide)
Base Material(PET) Polyethylene Terephthalate
ThicknessPET 48ga / 12micron
OTR Barrier0.1 cc/m2/day
0.006 cc/100in2/day
WVTR Barrier0.05 g/m2/day
0.003 g/100in2/day

Contact us for your specific application.

GL FILM Grade Selector

Application Clear
Sterilization/Filling Clear
Base Film Clear
Packaging Content Clear
Sustainability Clear
Barrier Levels
OTR (cc/100in2/day) (cc/m2/day)   Clear
WVTR (g/100in2/day) (g/m2/day)   Clear
GradeBase FilmOTR
(Metric/Imperial)
WVTR
(Metric/Imperial)
Usage
AX-7 PET 48ga / 12micron0.5 / 0.0321 / 0.065Dry Goods
GX-P-F PET 48ga / 12micron0.1 / 0.0060.05 / 0.003Medical & Electronics where High OTR Needed
GL-AEC-F PET 48ga / 12micron0.3 / 0.0190.7 / 0.045Dry and Liquid Content- Hot Fill
GL-AR-DF PET 48ga / 12micron0.3 / 0.0191 / 0.065Semi-Retort - Liquid Content
GL-ARH PET 48ga / 12micron0.3 / 0.0191.3 / 0.084High Retort - Liquid Content
GL-RD PET 48ga / 12micron0.2 / 0.0130.3 / 0.019Various Product for Enhanced Post-Retort
GL-LE-G PE 125ga / 31.75micron1 / 0.0650.5 / 0.032Dry Content and Recyclable Stream
GL-LP-G PP 68ga / 17micron1 / 0.0650.5 / 0.032Dry Content and Recyclable Stream
GL-BP-F PP 72ga / 18micron0.2 / 0.0130.2 / 0.013Liquid Content / Hot-Fill / Boiling Condition and Recyclable Stream
No products found. Clear all filters.
Measurement conditions:
OTR (86°F, 70%RH): cc/100in²/day
OTR (30°C, 70%RH): cc/m²/day
WVTR (104°F, 90%RH): g/100in²/day
WVTR (40°C, 90%RH): g/m²/day
